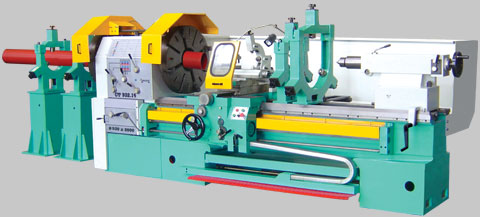

| TECNICAL DATA |
| Height of centers | mm | 467 |
| Distance between centers | mm |
1000-1500-2000-3000-4000-5000-6000 |
| Swing | mm | |
| over bed | | 930 |
| over carriage | | 610 |
| in the gap | |
1100 |
| Width of bed | mm | 560 |
| SPINDEL |
| Spindle bore | mm | ф360 |
| Number of speed | № | 12 |
| Spindle speed range | rpm |
8-400 |
| FEEDS-THREADS |
| Number of feeds | № | 160 |
| Range of | | |
| longditudinal feeds | mm/rev | 0,039-15 |
| transversal feeds | mm/rev | 0,0195-7,5 |
| Number of threads | № | 320(4 X 80) |
| metric | mm | 0,5-150 |
| inch | tr/1" | 60-13/64 |
| module | m | 0,125-37,5 |
| DP |
DP |
240-4/5 |
| Cross slide travel |
|
510 |
| Compound slide travel | |
250 |
| TAIL STOCK |
| Quill diameter | mm | 125 |
| Quill travel | mm |
265 |
| Quill taper | Morse | 6 |
| MOTORS |
| Main drive | kW | 15; 18,5 |
| Rapid traverse | kW | 0,55 |
| Lubrication pump | kW |
0,12 |
| Coolant pump | kW |
0,09 |
| ADDITIONAL CONSTRUCTIONAL MODIFICATIONS |
| *We are offering a possibility for English version on the machine. |
| *Machines can be "CE" or normal execution. |
*By request of the customer we can put additional a digital indicator system and
a pedal brake. |
| OVER ALL DIMENSIONS |
| Width | mm |
1840 |
| Height | mm |
1890 |
| Length | mm | |
| DP 1000 | | 3500 |
| DP 1500 | | 4000 |
| DP 2000 | | 4500 |
| DP 3000 | | 5500 |
| DP 4000 | | 6500 |
| DP 5000 | | 7500 |
| DP 6000 | | 8500 |
| WEIGHT |
| DP 1000 | kg | 4840 |
| DP 1500 | kg | 5120 |
| DP 2000 | kg | 5440 |
| DP 3000 | kg | 6160 |
| DP 4000 | kg | 7460 |
| DP 5000 | kg | 8740 |
| DP 6000 | kg | 9490 |
|
|
