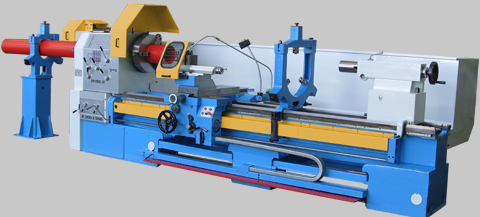

Universal lathe CT1032.10 for TUB 10 inch TECNICAL DATA  Height of centers mm 517  Distance between centers mm 1000-1500-2000-3000-4000-5000-6000  Swing mm      over bed 1030      over carriage 710      in the gap 1200  Width of bed mm 560 SPINDEL  Spindle bore mm ф260  Number of speed № 12  Spindle speed range rpm 8-400 FEEDS-THREADS  Number of feeds № 160  Range of      longditudinal feeds mm/rev 0,039-15      transversal feeds mm/rev 0,0195-7,5  Number of threads № 320(4 X 80)      metric mm 0,5-150      inch tr/1" 60-13/64      module m 0,125-37,5 DP DP 240-4/5 Cross slide travel   550 Compound slide travel   250 TAIL STOCK  Quill diameter mm 125  Quill travel mm 265  Quill taper Morse 6 MOTORS  Main drive kW 15; 18,5  Rapid traverse kW 0,55  Lubrication pump kW 0,12  Coolant pump kW 0,09 ADDITIONAL CONSTRUCTIONAL MODIFICATIONS  *We are offering a possibility for English version on the machine.  *Machines can be "CE" or normal execution.  *By request of the customer we can put additional a digital indicator system and   a pedal brake. OVER ALL DIMENSIONS  Width mm 1940  Height mm 1940  Length mm      DP 1000 3500      DP 1500 4000      DP 2000 4500      DP 3000 5500      DP 4000 6500      DP 5000 7500      DP 6000 8500 WEIGHT      DP 1000 kg 4910      DP 1500 kg 5210      DP 2000 kg 5510      DP 3000 kg 6210      DP 4000 kg 7510      DP 5000 kg 8810      DP 6000 kg 9570 [BACK]
